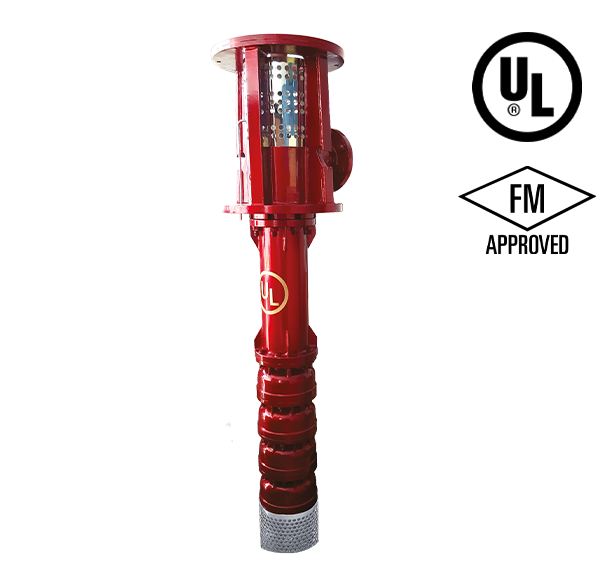

A Vertical Turbine Fire Pump is a specialized centrifugal pump designed for fire protection systems where the water supply is located below ground level, such as wells, reservoirs, lakes, or underground storage tanks. This pump type is widely used in facilities that require a dependable and continuous water source for firefighting operations.

The pump operates through a vertical shaft connected to multiple impellers (bowl assemblies) submerged in the water source. These impellers lift water through a column pipe to the discharge head located above ground, where it is then delivered to the fire protection piping system. The motor, typically electric or diesel-driven, is mounted above the discharge head, ensuring easy maintenance and reliable performance.

Vertical Turbine Fire Pumps are designed and manufactured in accordance with international fire protection standards, including NFPA 20, ensuring safety, reliability, and compliance for critical fire protection applications. Their design allows them to perform efficiently in installations where traditional horizontal pumps cannot operate due to insufficient suction conditions.

These pumps are built using high-quality materials such as cast iron, bronze, stainless steel, or ductile iron to withstand demanding environments and ensure long service life. Multiple impeller stages can be configured to achieve the required flow rate and pressure for different fire protection systems.

Key Features

• Vertical shaft design suitable for deep water sources

• High efficiency multi-stage impeller system

• Compliant with NFPA 20 fire protection standards

• Available with electric motor or diesel engine drive

• Durable construction for long operational life

• Designed for continuous readiness and emergency response

Applications

Vertical Turbine Fire Pumps are commonly used in:

• Industrial plants and manufacturing facilities

• Oil & gas refineries

• Power generation plants

• Airports and seaports

• High-rise commercial buildings

• Municipal water and fire protection systems

With their robust design, high reliability, and ability to draw water from deep sources, Vertical Turbine Fire Pumps play a crucial role in ensuring effective fire protection and safety in critical infrastructure and industrial environments.
